Fiber optic technology has revolutionized the way we transmit data, offering faster and more reliable internet connections. To make the most out of fiber optic cables, it is essential to have the right tools for installation and maintenance. A fiber optic termination kit is one such tool that ensures you can properly terminate fiber optic cables, making the connections efficient and reliable.
In this article, we’ll explore the best fiber optic termination kits, highlighting their features, benefits, and why you need one. We’ll also cover some common subtopics related to fiber optic termination kits to help you understand the full scope of their importance in fiber optic networking.
What is a Fiber Optic Termination Kit?
A fiber optic termination kit is a collection of specialized tools used for connecting fiber optic cables to networking equipment, such as switches, routers, or even patch panels. The process of terminating a fiber optic cable involves attaching connectors to the cable’s end to ensure proper signal transmission.
Without a fiber optic termination kit, it’s nearly impossible to perform this task accurately, as fiber optic cables are delicate and require precise handling. The kit typically contains several tools such as fiber strippers, cleavers, crimpers, polishing pads, and connectors.
Why Do You Need a Fiber Optic Termination Kit?
If you’re involved in the installation, maintenance, or repair of fiber optic networks, having a fiber optic termination kit is essential. Here’s why:
- Accuracy: Fiber optic cables are highly sensitive, and the process of terminating them requires precision. The tools in a fiber optic termination kit help ensure that the fiber optic connectors are installed properly, reducing the risk of signal loss and network downtime.
- Speed: With the right tools, terminating fiber optic cables becomes faster and more efficient. A fiber optic termination kit helps professionals finish the job quickly without compromising the quality of the connection.
- Durability: A good fiber optic termination kit includes tools that are designed for longevity and performance. With proper use, these tools will last for many fiber optic installations, ensuring that your investment pays off.
- Cost-Effectiveness: By using a fiber optic termination kit, you reduce the need to outsource termination jobs, which can be costly in the long run.
Essential Tools in a Fiber Optic Termination Kit
A fiber optic termination kit typically includes several tools that are essential for fiber optic cable termination. Let’s break down these tools and their roles:
1. Fiber Optic Strippers
Fiber optic strippers are used to carefully remove the protective coating from the fiber optic cable without damaging the delicate fibers inside. Proper stripping ensures that the cable is ready for the connector.

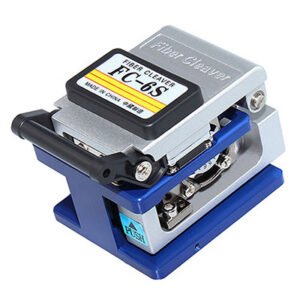

2. Fiber Cleaver
After the fiber is stripped, it needs to be cut at a precise angle. A fiber optic cleaver is used for this purpose. It ensures that the fiber is cut cleanly, which is essential for a reliable connection.
3. Crimping Tools
Crimping tools are used to secure the fiber optic connectors to the stripped fibers. These tools ensure that the connectors are firmly in place and that there’s no risk of them loosening over time.

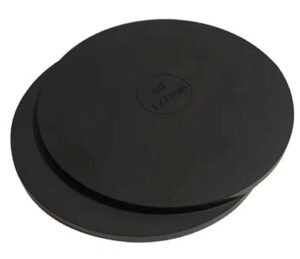

4. Polishing Pads
Once the connector is attached, the end of the fiber needs to be polished to ensure a smooth surface. Polishing pads are used to remove any imperfections and ensure a perfect connection.
5. Fiber Optic Connectors

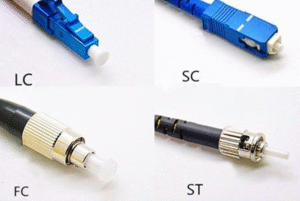

A fiber optic termination kit will typically include a selection of fiber optic connectors such as SC, LC, and ST connectors. These connectors are used to attach the fiber optic cable to networking devices.

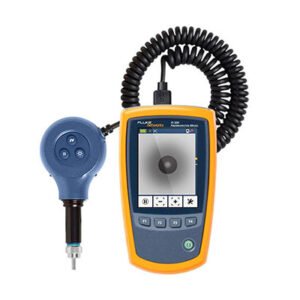

6. Inspection Scope
An inspection scope is used to check the quality of the fiber after it has been terminated. This tool helps identify any imperfections in the fiber, which could affect the network’s performance.
Types of Fiber Optic Termination Kits
There are different types of fiber optic termination kits available in the market, each designed for different needs and applications. Let’s explore the most common types:
1. Standard Fiber Optic Termination Kits
Standard kits come with the basic tools necessary for terminating fiber optic cables. These kits are suitable for individuals who need to perform simple termination jobs.
2. Advanced Fiber Optic Termination Kits
For professionals dealing with complex fiber optic systems, advanced kits provide more specialized tools and connectors. These kits often include higher-quality tools that are more durable and precise.
3. Pre-terminated Fiber Optic Kits
Some fiber optic termination kits come pre-terminated, meaning the fiber ends are already prepared for use. These kits are ideal for quick setups and are often used in environments that need rapid installation.
How to Use a Fiber Optic Termination Kit
To make the most out of your fiber optic termination kit, you need to understand how to use it properly. Here’s a basic guide to the process:
Strip the Fiber Cable
Use the fiber optic strippers to remove the outer jacket of the cable. Make sure to leave enough fiber exposed for the connector installation.
Cleave the Fiber
Once the fiber is stripped, use the fiber cleaver to cut the fiber to the correct length. The cleaver should ensure that the fiber is cut at a precise angle for optimal performance.
Attach the Connector
Place the fiber into the appropriate connector and use the crimping tool to secure it. Ensure that the connector is properly aligned to avoid signal loss.
Polish the Fiber
Use the polishing pads to smooth the fiber end, ensuring that the surface is even and free from any burrs or imperfections.
Inspect the Fiber
After the connector is attached, use the inspection scope to check the quality of the fiber termination. This step helps ensure that the job has been done correctly.
Best Fiber Optic Termination Kits Available
When choosing the best fiber optic termination kit, there are several factors to consider, including the quality of the tools, the kit’s compatibility with different fiber types, and its ease of use. Here are some of the top fiber optic termination kits available:

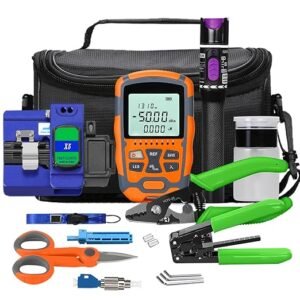

YICIZOL 30km Visual Fault Locator
Description:
This comprehensive fiber optic tool kit is designed for CATV (Cable Television) engineers, featuring a 30km Visual Fault Locator (VFL), optical power meter with FC and SC connectors, an optical fiber cleaver, and an FC/UPC to LC/UPC adapter. It’s ideal for FTTH (Fiber to the Home) installations, offering all the necessary tools to ensure precise fiber optic termination and fault detection.
Pros:
- Includes a wide variety of tools for CATV and FTTH applications.
- The 30km VFL offers long-range fault detection, essential for field work.
- Easy-to-use FC/SC connectors ensure compatibility with most fiber optic networks.
- Durable and compact tool bag for easy transportation.
Cons:
- Lacks some advanced features found in higher-end kits.
- The tools are not as specialized as other dedicated sets for specific tasks (e.g., cleaving).
- Might be too basic for highly technical or professional fiber optic engineers.

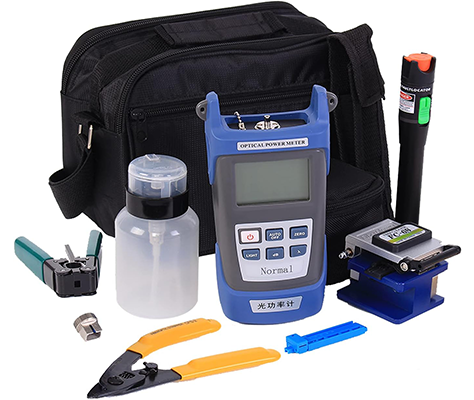

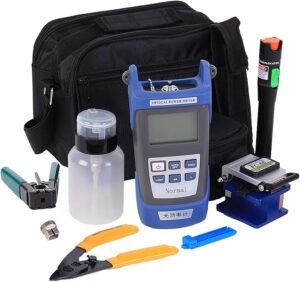

Fiber Optic Termination Tool Kit
Description:
This 9-in-1 fiber optic termination tool kit includes everything needed for fiber optic termination and testing. It features an FC-6S cleaver, optical power meter finder, 30km visual fault locator, and a range of additional hand tools like pliers, cable cutters, and strippers, making it perfect for FTTH (Fiber to the Home) projects.
Pros:
- The kit is well-rounded, covering termination, testing, and fault location.
- FC-6S cleaver is known for its precision and quality cuts.
- Includes a long-range visual fault locator for effective troubleshooting.
- Compact and portable with a durable carrying case.
Cons:
- The cleaver may not work well for very high-precision applications.
- The optical power meter’s range may not be suitable for advanced troubleshooting.
- Some tools may not have professional-grade durability.

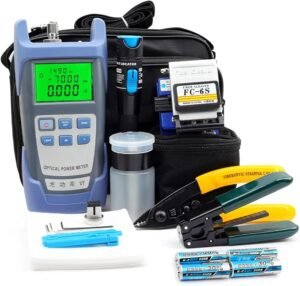

FTTH Fiber Optic Cold Connection Assembly Termination Tools Kit
Description:
This kit is specifically tailored for fiber optic cold connection assembly. It includes a visual fault locator, fiber cleaver, SC FC connector, optical power meter finder, cable tester, and a variety of tools, such as a stripper and dust-free paper. It’s a great option for FTTH professionals needing a comprehensive yet portable kit.
Pros:
- Full kit for both assembly and testing, saving time on additional purchases.
- Includes high-quality dust-free paper for cleaner work environments.
- The visual fault locator makes it easy to detect faults in fiber installations.
- Suitable for a range of fiber optic applications, from cold connections to testing.
Cons:
- May lack certain features for high-precision testing.
- The cleaver could be better suited for heavy-duty use.
- Limited to basic cable testing capabilities, which may not meet advanced needs.

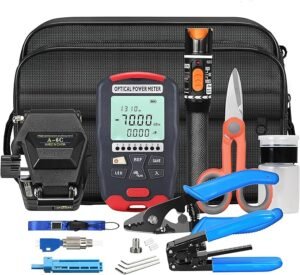

Fiber Optic Termination Kit FTTH Cold Connection Tool Kit
Description:
This fiber optic termination kit is a complete solution for fiber optic cold connection. It features a 6C fiber cutting knife, stripper pliers, 10km visual fault locator, D7 optical power meter, and an FC to LC adapter for connecting different fiber types. The kit also includes RJ45 network testing, adding versatility for hybrid fiber-copper installations.
Pros:
- The inclusion of RJ45 network testing is a great feature for mixed installations.
- Compact and easy to carry, ideal for fieldwork.
- Affordable option for basic fiber optic terminations and testing.
- 10km fault locator is sufficient for most practical needs.
Cons:
- The visual fault locator may not work for more extensive fiber networks.
- The tools, while adequate, may not offer professional-grade precision.
- The optical power meter lacks the advanced range required for complex troubleshooting.

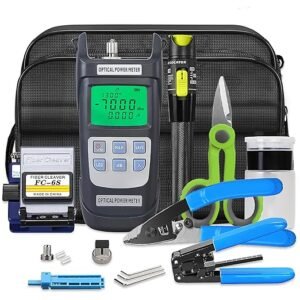

9 in 1 Fiber Optic Termination Tool Kit
Description:
This 9-in-1 fiber optic termination tool kit provides a set of high-quality tools, including a 6S optical fiber cleaver, a 30km visual fault locator (VFL), an optical power meter (OPM) with a wide range (-70 to +10 dBm), and additional tools like strippers and pliers. The kit is designed for FTTH and cold welding applications, offering reliable results in fiber optic installations and troubleshooting.
Pros:
- Excellent range on the optical power meter, supporting a variety of fiber optic testing applications.
- High-quality 6S cleaver for precise fiber cuts.
- The long-range 30km VFL ensures that even remote faults can be easily located.
- Versatile and complete kit for fiber optic cold welding and terminations.
Cons:
- The OPM range may be overkill for basic applications and might require careful calibration.
- Some tools are more suitable for general use rather than specialized professional tasks.
- The overall cost may be higher compared to simpler kits for basic users.
These reviews should provide a solid understanding of each product’s features, along with their pros and cons, to help you make an informed decision.
How to Maintain a Fiber Optic Termination Kit
To ensure the longevity and performance of your fiber optic termination kit, it’s essential to maintain it properly. Here are some tips to keep your kit in top condition:
- Clean Your Tools: Regularly clean all tools, especially the fiber cleaver and crimpers, to remove any dust or debris. This ensures that the tools work efficiently.
- Store Properly: Store the kit in a clean, dry place to prevent corrosion and damage. Keep it in a case or toolbox to protect the tools.
- Replace Worn Parts: Over time, some parts, such as polishing pads and fiber cleaver blades, will wear out. Replace them as needed to maintain the quality of your terminations.
Conclusion
A fiber optic termination kit is an essential tool for anyone involved in the installation or maintenance of fiber optic networks. By ensuring proper termination, you can guarantee reliable and high-speed connections. Whether you are a DIY enthusiast or a professional technician, investing in a good fiber optic termination kit is essential for ensuring the quality and durability of your fiber optic installations.
By understanding the components, types, and how to use these kits, you’ll be well-equipped to handle any fiber optic termination task with ease and confidence.
